Original Article

Volume 15, Number 5, October 2022, pages 240-252

Development of a Predictive Model for Common Bile Duct Stones in Patients With Clinical Suspicion of Choledocholithiasis: A Cohort Study

Suppadech Tunruttanakula, e, Kotchakorn Verasmithb, Jayanton Patumanondc, Chatchai Mingmalairakd

aDepartment of Surgery, Sawanpracharak Hospital, Nakhon Sawan 60000, Thailand
bDepartment of Radiology, Sawanpracharak Hospital, Nakhon Sawan 60000, Thailand
cCenter for Clinical Epidemiology and Clinical Statistics, Faculty of Medicine, Chiang Mai University, Chiang Mai 50200, Thailand
dDepartment of Surgery, Faculty of Medicine, Thammasat University, Pathum Thani 10120, Thailand
eCorresponding Author: Suppadech Tunruttanakul, Department of Surgery, Sawanpracharak Hospital, Muang, Nakhon Sawan 60000, Thailand

Manuscript submitted July 31, 2022, accepted September 14, 2022, published online October 19, 2022
Short title: Choledocholithiasis Score-Based Model


Background: Current choledocholithiasis guidelines heavily focus on patients with low or no risk, they may be inappropriate for populations with high rates of choledocholithiasis. We aimed to develop a predictive scoring model for choledocholithiasis in patients with relevant clinical manifestations.

Methods: A multivariable predictive model development study based on a retrospective cohort of patients with clinical suspicion of choledocholithiasis was used in this study. The setting was a 700-bed public tertiary hospital. Participants were patients who had completed three reference tests (endoscopic retrograde cholangiography, magnetic resonance cholangiopancreatography, and intraoperative cholangiography) from January 2019 to June 2021. The model was developed using logistic regression analysis. Predictor selection was conducted using a backward stepwise approach. Three risk groups were considered. Model performance was evaluated by area under the receiver operating characteristic curve, calibration, classification measures, and decision curve analyses.

Results: Six hundred twenty-one patients were included; the choledocholithiasis prevalence was 59.9%. The predictors were age > 55 years, pancreatitis, cholangitis, cirrhosis, alkaline phosphatase level of 125 - 250 or > 250 U/L, total bilirubin level > 4 mg/dL, common bile duct size > 6 mm, and common bile duct stone detection. Pancreatitis and cirrhosis each had a negative score. The sum of scores was -4.5 to 28.5. Patients were categorized into three risk groups: low-intermediate (score ≤ 5), intermediate (score 5.5 - 14.5), and high (score ≥ 15). Positive likelihood ratios were 0.16 and 3.47 in the low-intermediate and high-risk groups, respectively. The model had an area under the receiver operating characteristic curve of 0.80 (95% confidence interval: 0.76, 0.83) and was well-calibrated; it exhibited better statistical suitability to the high-prevalence population, compared to current guidelines.

Conclusions: Our scoring model had good predictive ability for choledocholithiasis in patients with relevant clinical manifestations. Consideration of other factors is necessary for clinical application, particularly regarding the availability of expert physicians and specialized equipment.

Keywords: Choledocholithiasis; Clinical decision rules; Risk assessment


Choledocholithiasis or common bile duct (CBD) stone is characterized by the presence of stones in the bile duct. The most common form is secondary CBD stone: stones originate in the gallbladder, then migrate to the bile duct [1]. Management usually includes cholecystectomy (gallbladder removal) [2]; this procedure is currently performed using a laparoscopic approach. CBD stones are suspected in symptomatic gallstone patients on the basis of relevant clinical manifestations, abnormal liver function test (LFT) results, or abnormal relevant imaging parameters [3]. CBD stones can cause severe lethal complications [4]; the current recommendation is that all detected stones should be treated [5]. However, it is challenging to select the optimal investigation approach from the available options.

For example, endoscopic retrograde cholangiography (ERC) has therapeutic potential but can cause morbidity or (rarely) mortality [6]. In contrast, intraoperative cholangiography (IOC) enables single-stage management (i.e., exploration combined with cholecystectomy) [7]. Nevertheless, experienced surgeons and more specialized equipment are required for the treatment of CBD stones, particularly in the laparoscopic era [8]. In this context, guidelines, recommendations, and scoring systems have been constructed [5, 9-13]; however, such resources generally were not designed exclusively for patients with suspected CBD stones [5, 9, 13], and they have questionable relevance in high-prevalence populations [14, 15]. Notably, published scoring systems are not widely used [10-12]. Therefore, this study was performed to develop a predictive model for CBD stones in patients with relevant clinical manifestations. We also aimed to build a practical model that complied with the TRIPOD guideline [16] and could be easily used in clinical practice.

Materials and Methods▴Top

Design and setting

This multivariable predictive model development study used data from a retrospective observational cohort of patients with suspected CBD stones. All patients were treated in Sawanpracharak Hospital (Thailand), a regional 700-bed tertiary public hospital. The patients in this study comprised both local and referral cases. All data were acquired from the hospital information system.


This study included patients who completed three main reference tests (ERC, IOC or operative bile duct exploration, and magnetic resonance cholangiopancreatography (MRCP)) from January 2019 to June 2021. All tests are considered standard for CBD stone diagnosis [4]. The inclusion criteria for suspected CBD stones were: 1) symptomatic gallstone or cholecystitis with abnormal LFT results, primary imaging findings indicative of dilated bile duct, or presence of CBD stone; 2) gallstone with jaundice; 3) gallstone pancreatitis; 4) cholangitis. Standard diagnostic guidelines were used to confirm the diagnosis of gallstone pancreatitis, cholecystitis, and cholangitis [17-19].

The exclusion criteria were: 1) previous biliary tract intervention (surgical or endoscopic); 2) suspected malignancy: painless obstructive jaundice (bilirubin > 5.85 mg/dL) with anorexia and weight loss, along with imaging findings indicative of bile duct dilatation without stones [20, 21]. Patients were excluded if initial analysis suggested malignancy, but later studies revealed CBD stones alone.

Predictors and outcome

Potential CBD stone predictors and interacting variables were identified in accordance with previous literature [3, 13, 22]: patient age, sex, clinical manifestations, status-post (s/p) cholecystectomy, cirrhosis status, results of LFTs (levels of serum glutamic oxaloacetic transaminase (SGOT), serum glutamic pyruvic transaminase (SGPT), alkaline phosphatase (ALP), and total bilirubin (TB)), and relevant imaging findings. Cirrhosis was defined according to known clinical history or imaging-confirmed morphological liver cirrhosis. Relevant imaging findings were CBD size (in mm) and presence of CBD stones. Exploratory imaging comprised abdominal ultrasonography or computed tomography (CT) scans. Because we aimed to create a practical model, we categorized some predictors in accordance with the approaches in widely used CBD stone guidelines and meta-analyses [3, 22]. Categorized variables were age, ALP level, TB level, and CBD size. The binary predictors were age ≤ 55 vs. > 55 years and CBD size ≤ 6 vs. > 6 mm. The ternary predictors were ALP level < 125, 125 - 250 (two-fold greater than the normal limit), and > 250 U/L; TB level < 1.8, 1.8 - 4, and > 4 mg/dL. The CBD size was acquired from medical records (if available) or quantified by a participating radiologist using the hospital’s picture archiving and communication system. The measurement location was immediately distal to the porta hepatis or mid-CBD. Bile duct dilatation status was not used to avoid ambiguous phrasing (e.g., minimal or borderline dilatation) and uncertain cut-off diameter.

Flow and timing for the determinant variable were as follows. Age was measured at the reference test date. In the hospital, a repeat LFT protocol is used prior to reference tests. However, physicians occasionally choose not to implement this protocol. Data for more than 7 days of LFTs were excluded. No repeat imaging protocol was established, although some physicians chose to perform repeat imaging. The most recent results were used for analysis.

The outcome was the presence of CBD stone according to the results of reference tests. The tests were chosen according to the attending physician’s preference. CBD stones were considered “present” (detected) if visualized in the endoscopic or operative field in the initial or subsequent investigational session. If CBD stones were not visible (e.g., fluoroscopy or radiography analyses showed filling defects and patients were lost to follow-up (FU)), images were reviewed by either two endoscopists or one endoscopist and one radiologist. CBD stones were considered “absent” (not detected) if the reference tests did not detect CBD stones during at least 5 - 6 months of FU to evaluate symptoms and LFT results; imaging findings were evaluated if available. Patients with fewer than 5 - 6 months of FU and patients who were lost to FU were contacted by phone to check for symptom persistence or therapeutic management in other hospitals. Negative responses to both questions were necessary for a CBD stone to be considered “absent.” CBD stones were also considered “absent” if patients died or could not be contacted. If patients underwent a repeat examination using one of the reference tests, the 5 - 6 months’ FU assessment was not required. Inconclusive outcomes were excluded.

Sample size and missing data

The sample size of 536 patients was established on the basis of LFT results and imaging parameters, using 90% statistical power and a two-sided alpha level of 0.05. The data used for calculation were collected from the historical records of 50 patients; the CBD stone prevalence was 65%.

Because of the study protocol, missing data solely involved imaging parameters (CBD size > 6 mm and presence of CBD stone); both parameters were binary. Concerning practical implications, missing data were managed by the mean-imputation method; each missing value was changed to 0.5.

Statistical analysis and model development

In univariable descriptive analysis, Fisher’s exact test was used for categorical data; the t-test or the Mann-Whitney U test were used for continuous data. Multivariable logistic regression analysis was the primary model development analytic method. Predictors were selected based on a backward stepwise approach. Clinical relevance was also considered during the predictor selection process.

Score derivation and validation

Logit coefficient values of parameters remaining after selection were used to construct the score-based prediction model. The sum of the total score for each patient was used to assess the model’s ability to predict CBD stone status. The model performance was evaluated by discriminative ability in terms of the area under the receiver operating characteristic curve (AUC) (concordance index) and classification measures (e.g., sensitivity and specificity). Calibration (i.e., the relationship between predicted and observed risk) was performed by Hosmer-Lemeshow goodness-of-fit statistics and construction of a calibration plot. The ability to predict clinical outcomes was assessed using decision curve analysis [23]. In addition, an internal validation with bootstrap resampling procedures was performed to quantify the optimism and over-fitting of the derived model.

For clinical applications, cut-off considerations were intended to guide clinicians in the selection of investigations and treatments. Currently, there is no optimal CBD stone threshold probability to suggest treatment modalities [5]. We created a cut-off point by conducting a short survey and analyzing the classification properties for 10% increments of the model-predicted CBD stone probability.

The TRIPOD statement [16] suggests comparisons to existing models. However, to our knowledge, acceptable CBD stone scoring models are unavailable. Thus, we compared the proposed model with two widely used guidelines: the American Society of Gastrointestinal Endoscopy (ASGE) 2019 (revised version) guidelines [9] and the European Society of Gastrointestinal Endoscopy (ESGE) guidelines [5]. The guidelines-predicted CBD stone probabilities were calculated using logistic regression analysis to compare AUC and decision curves.

Finally, sensitivity analysis was conducted to investigate outcome variability according to alteration of determinants. Statistical significance was set at P < 0.05. All statistical analyses were conducted using STATA software, version 17 (StataCorp, College Station, TX, USA).

This study used the same data as a previously published study [15]. However, both studies have different research questions, theories, unique analyses, and clinical implications. Technical descriptions of backward stepwise method, score derivation, and decision curve analysis are provided here (Supplementary Material 1,

Ethical approval

The study protocol was approved by the Human Research Ethics Committee of Thammasat University, Faculty of Medicine (MTU-EC-OO-0-169/64), and the Sawanpacharak Hospital Ethical Committee for Research in Human Subjects. The study was conducted in compliance with the ethical standards of the responsible institution on human subjects as well as with the Helsinki Declaration.



In total, 1,185 patients were included in the initial review; 564 were excluded because they met the exclusion criteria, were missing large amounts of data, had duplicate records, had an inconclusive outcome, and/or had no pre-test LFTs. In total, 621 patients were included in model construction and analysis. The participant flow is illustrated in Figure 1. The CBD stone prevalence was 59.9% (372 patients).

Click for large image

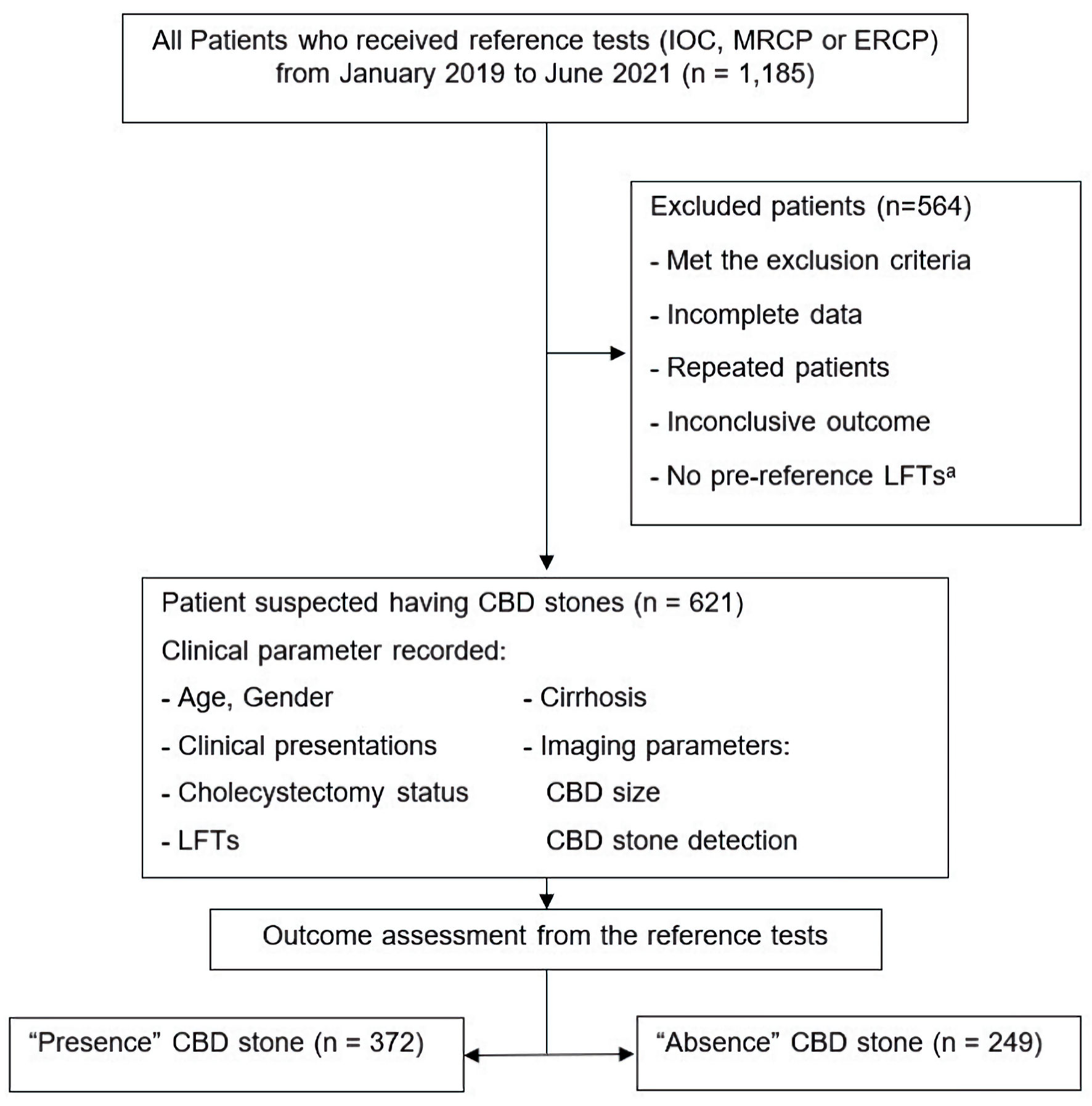

Figure 1. Study participant flow diagram. aPre-reference LFTs mean LFTs within 7 days before reference tests. CBD: common bile duct; ERC: endoscopic retrograde cholangiography; IOC: intraoperative cholangiography; LFTs: liver function tests; MRCP: magnetic resonance cholangiopancreatography.

The distributions of variables between CBD stone groups are shown in Table 1. Most patients were elderly women who presented with cholangitis. The most common reference test was ERC (82.9%, 515 patients); IOC and MRCP were performed in 8.1% (50 patients) and 9.0% (56 patients) of the patients, respectively. The median interval between basic imaging and reference tests was 8 days (interquartile range: 2 - 25 days). The percentage of patients who had the interval between basic imaging and reference tests within 2 weeks was 58.8%, or 365 patients. Ultrasonography was the main primary imaging modality (approximately 75.2% of patients), while CT scan was performed in 24.8% of patients.

Table 1.
Click to view
Table 1. Distribution of Variables Between Groups According to CBD Stone Status

In the CBD stone “present” group, three (0.8%) patients had benign bile duct stricture and eight (2.2%) patients had cancer. We included these patients in the CBD stone “present” group during analysis because both conditions mostly required ERC; this situation can occur in clinical practice. In the CBD stone “absent” group, 71 (28.5%) patients had inadequate FU; of these patients, 53 (21.3%) were contacted via telephone, six (2.4%) died, and 12 (4.8%) were lost to FU.

Missing values were identified regarding the imaging parameters of 14 (2.3%) patients; these missing values were caused by limited ultrasonographic examination related to the patient’s physical characteristics or presence of intestinal gas. Because both variables (CBD size > 6 mm and presence of CBD stone) were binary, we replaced any missing values with 0.5.

Model development and specification

Univariable analysis revealed potential predictors (Table 1). Among the significant differences, pancreatitis and cirrhosis were less frequent in the CBD stone “present” group. The selection process removed the following variables from the scoring model: jaundice, SGPT, and SGOT. Cholangitis was identified as a nonsignificant predictor in multivariable analysis. However, it is a strong predictor in published guidelines [5, 9], and its P value was near 0.05 (i.e., 0.14); thus, we retained cholangitis in the model. TB level 1.8 - 4 mg/dL was removed, although it is the second level of the significant ternary predictor TB. Its coefficient was near 0 (0.03), while its P value was 0.92. Because the use of a coefficient near 0 as a denominator would cause extremely high score values, this predictor was excluded from the model.

A simplified (parsimonious) model is presented in Table 2. The predictors used in model construction were age > 55 years, pancreatitis, cholangitis, cirrhosis, ALP level 125 - 250 and > 250 U/L, TB level > 4 mg/dL, CBD size > 6 mm, and presence of CBD stone. ALP level 125 - 250 U/L had the lowest coefficient and served as the denominator. The item score ranged from -5.5 for cirrhosis to 6.5 for ALP > 250 U/L. Pancreatitis and cirrhosis each had a negative score. The sum of scores was -4.5 to 28.5. The mean score was significantly higher in the CBD stone “present” group than in the CBD stone “absent” group (mean ± standard deviation: 15.6 ± 6.2 vs. 8.3 ± 6.2, P < 0.01).

Table 2.
Click to view
Table 2. Simplified (Parsimonious) Modeling With Predictor Odds Ratios, β Coefficients, and Adjusted Scores

Regarding risk-group or cut-off classification, a short survey was administered to gastroenterologists and other surgeons (n = 30) to identify the expected threshold probabilities for ERC and IOC. For the question regarding the expected CBD stone probability threshold for consideration of ERC, the responses were generally equally distributed: approximately 30% to > 50% (consistent with the ASGE suggestion [9]), 70-80%, and 90-100%. For IOC, the expected threshold probability was also generally equally distributed: < 10%, 20-30%, and > 50%. We presumed that these ranges of expected threshold probabilities were secondary to physician experience and the availability of equipment in a particular facility. Generally, physicians required high CBD stone probability for consideration of ERC. More available investigational options may be related to the higher expected probability. In contrast, although the expected CBD stone probability could be high for IOC, there remained a large number of physicians who were unwilling to detect CBD stones using this method (presumably because of limited resources). While considering the survey results, we conducted another method that involved the separation of data into 10% increments of model-predicted CBD stone probability (Supplementary Material 2, and calculating their diagnostic properties. The potential higher probability cutoffs were 70%, 80%, and 90%; these cut-off values were decided for ERC. All candidates had high specificities, ranging from 80.7% to 97.2%. However, the sensitivities were poor (sensitivities for 80% and 90% cutoff: 41.7% and 24.5%, respectively) and the numbers of patients who would benefit from the 80% and 90% probability cutoffs were low (178 and 98 patients above cut-off level, respectively). We used a 70% probability cutoff because it had optimal diagnostic properties and a reasonable number of patients above the cut-off level (287 patients). The potential lower probability cutoffs were 10%, 20%, and 30%; these cut-off values were decided for IOC. All candidates had greater than 90% sensitivity, despite poor specificity (5.6-27.3%). Their likelihood ratios were also generally similar. Because all three cutoffs exhibited comparable diagnostic properties, we used a 30% cutoff because it had the highest number of patients who would benefit from the cut-off level (numbers of patients below cut-off level for 10%, 20%, and 30% probability cut-off values: 15, 48, and 84, respectively). However, because the lower cutoff had up to 30% CBD stone probability, which is considerable, we designated this group as the low-intermediate group. The three risk groups were low-intermediate, intermediate, and high; their respective threshold probabilities were ≤ 30%, 30-70%, and ≥ 70%. The respective cut-off scores were ≤ 5, 5.5 - 14.5, and ≥ 15 (for easier application in clinical practice, the ≥ 15 value is approximated from the ≥ 14.5 score for the ≥ 70% cut-off level). The risk-group properties are shown in Table 3. Overall, 84 (13.5%), 277 (44.6%), and 260 (41.9%) patients were categorized into low-intermediate, intermediate, and high-risk groups, respectively. The low-intermediate risk classification had high sensitivity (95.7%; 95% confidence interval (CI): 93.1%, 97.5%) but poor specificity (27.3%; 95% CI: 21.9%, 33.3%), while the high-risk classification had low sensitivity (58.6%; 95% CI: 53.4%, 63.7%) but high specificity (83.1%; 95% CI: 77.9%, 87.6%). The intermediate-risk classification included equal numbers of CBD stone “present” and “absent” patients. However, this classification tended to predict a CBD stone “absent” status (positive likelihood ratio (LHR+): 0.66; 95% CI: 0.56, 0.79; P < 0.01).

Table 3.
Click to view
Table 3. Scoring Model Characteristics and Diagnostic Properties Among the Three Risk Groups

Model performance

As shown in Figure 2, the overall model discriminative property in terms of AUC was 0.80 (95% CI: 0.76, 0.83). Both calibration methods, the calibration plot (Fig. 3) and the Hosmer-Lemeshow goodness-of-fit statistics, showed a good or close correlation between the scoring model-predicted risk vs. observed risk of CBD stones. The well-calibrated plot, interpreted by the locally weighted scatterplot smoothing line slope, was consistently within 95% CI of the reference line. Hosmer-Lemeshow goodness-of-fit statistics showed a nonsignificant difference (P = 1.00), confirming the correlation.

Click for large image

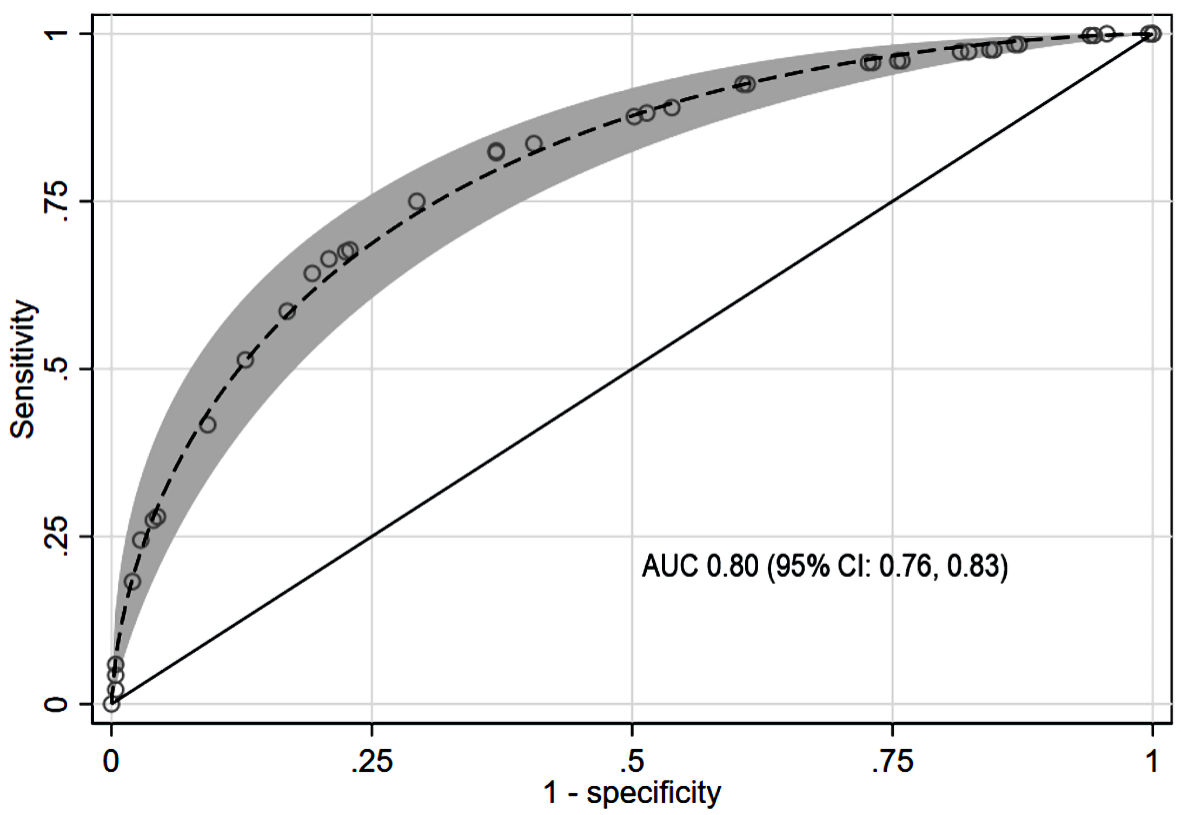

Figure 2. Parametric ROC with 95% confidence band for CBD stone prediction using the scoring model. AUC: area under the receiver operating characteristic curve; CBD: common bile duct; CI: confidence interval; ROC: receiver operating characteristic curve.

Click for large image

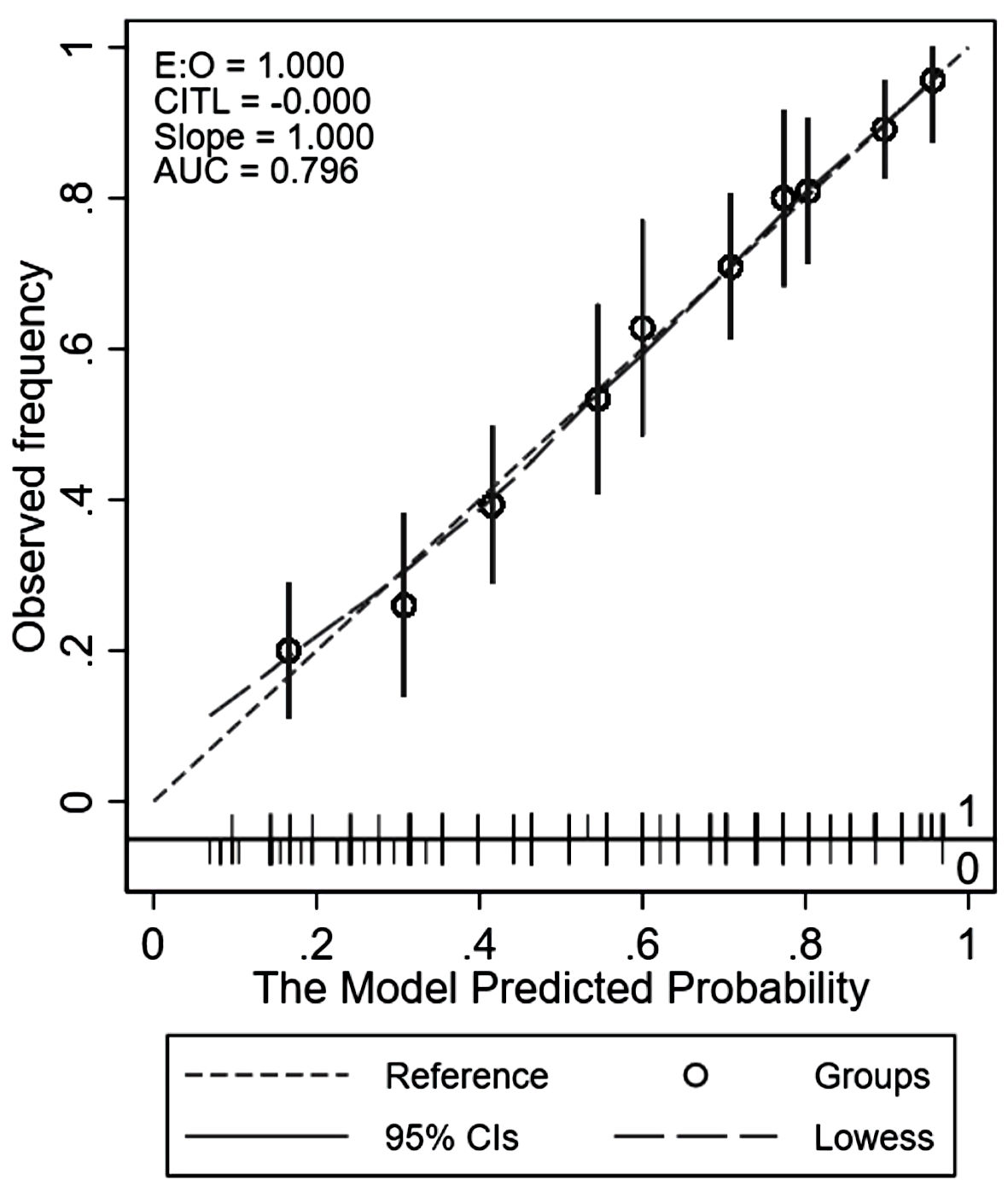

Figure 3. Calibration plot comparing the score-predicted and observed risks of common bile duct stone. AUC: area under the receiver operating characteristic curve; CIs: confidence intervals; CITL: calibration-in-the-large; LOWESS: locally weighted scatterplot smoothing.

The risk curve (Fig. 4) depicts the three risk-group classifications as vertical dashed lines. The predicted risk of CBD stone increased (y-axis) in a manner that corresponded to the increased in our proposed score (x-axis). The circle size indicates the proportion of patients in each circular area.

Click for large image

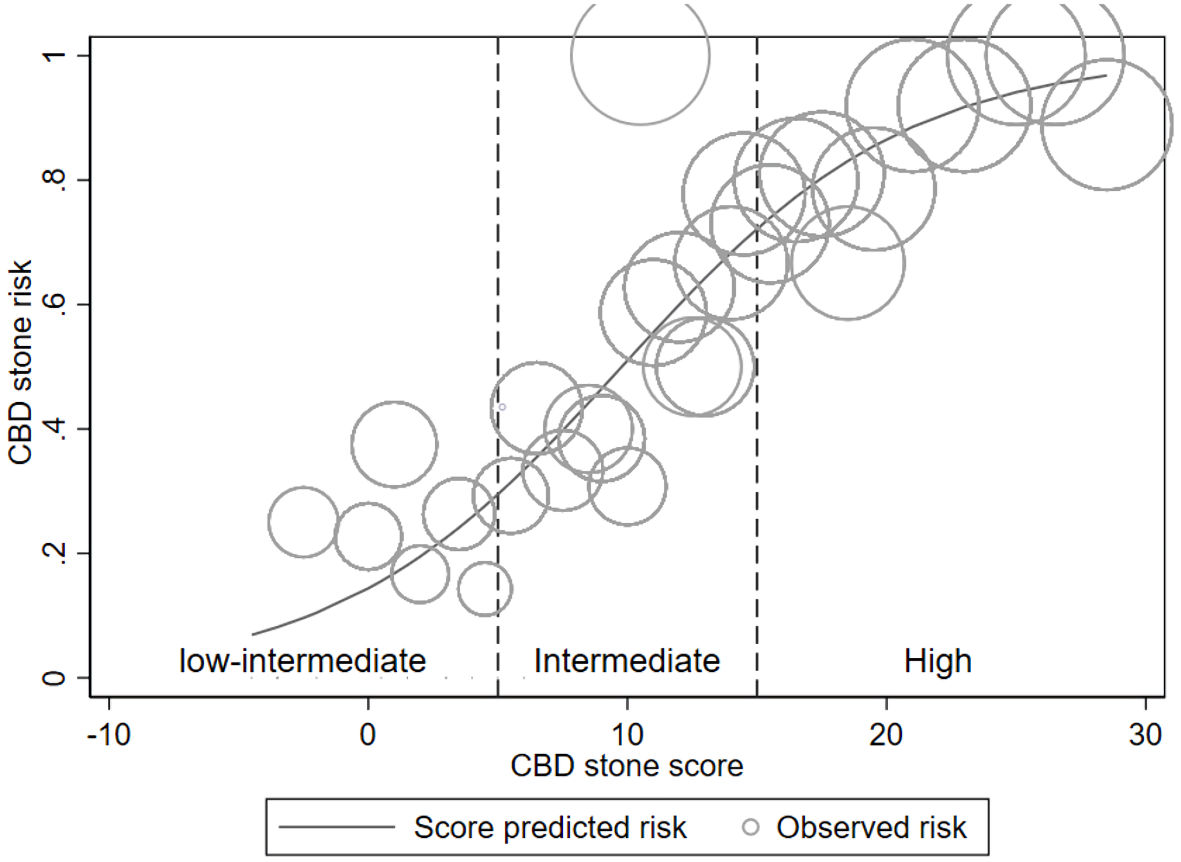

Figure 4. Risk curve. Risk curve illustrating the score-predicted CBD stone risk (solid line) and the observed stone risk (hollow circles) according to risk group (vertical dash line). The relative number of patients corresponds to the circle’s size. CBD: common bile duct.

The internally validated AUC of the scoring model decreased to 0.76 (95% CI: 0.72, 0.81).

Clinical usefulness was determined by concurrent decision curve analysis with comparison to current CBD stone guidelines from the ASGE and the ESGE. Figure 5 shows a comparative AUC and decision curve between the proposed scoring model and guidelines from the ASGE and ESGE. Decision curve analysis showed that the scoring model had a clinically beneficial outcome, compared to the treat all curve; this was indicated by the model net benefit curve above the treat all curve. The scoring model’s net benefit was also superior to the net benefit of each set of guidelines. The model’s receiver operating characteristic curve was closer to the graph’s left upper corner, reflecting greater discriminative performance. Moreover, the scoring model’s AUC was 0.80 (95% CI: 0.76, 0.83); this was significantly superior to the ASGE guidelines (AUC: 0.67; 95% CI: 0.63, 0.71; P < 0.01) and the ESGE guidelines (AUC: 0.67; 95% CI: 0.63, 0.71; P < 0.01).

Click for large image

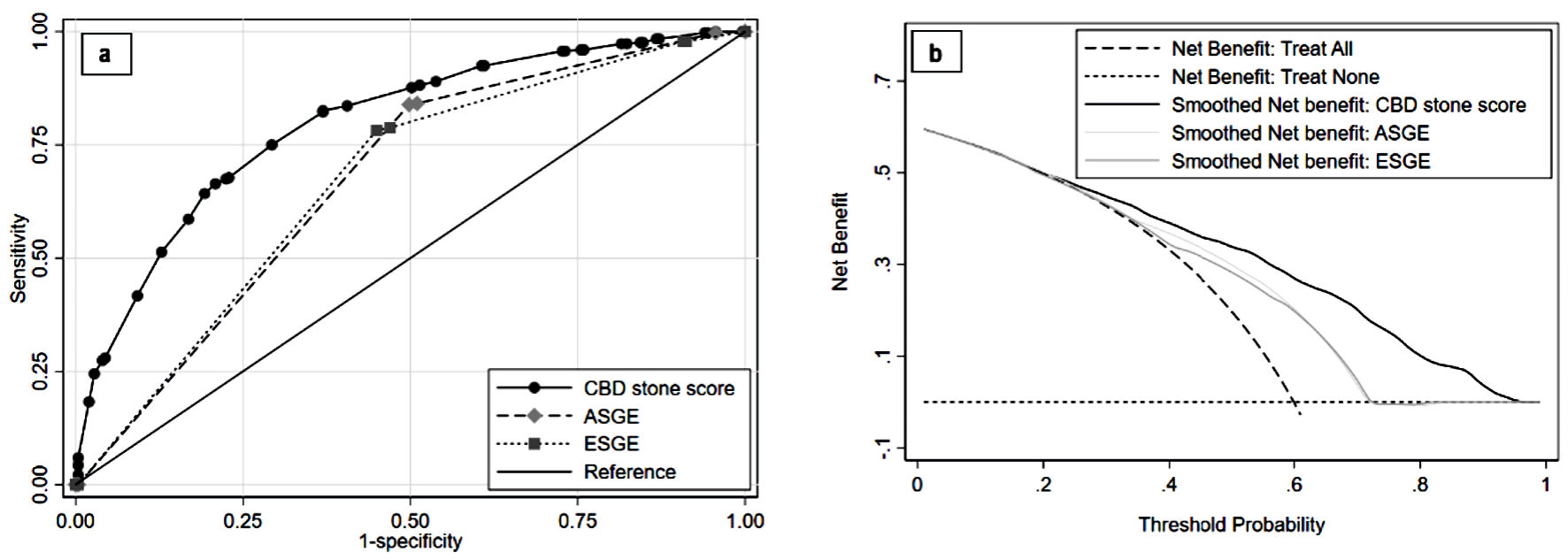

Figure 5. Comparing validation of CBD stone score performance to CBD stone guidelines. Discriminative ability with ROC is shown in (a) and clinical utility with decision curve analysis is shown in (b). ASGE: American Society of Gastrointestinal Endoscopy; CBD: common bile duct; ESGE: European Society of Gastrointestinal Endoscopy; ROC: receiver operating characteristic curve.

Sensitivity analysis was conducted to test the model performance robustness after modification of variables that could affect the outcome. By removing all missing values (complete case analysis, n = 607), the AUC was 0.79 (95% CI: 0.75, 0.83). By removing data of patients who were lost to FU, either by death or the inability to contact via telephone (n = 602), the AUC was 0.80 (95% CI: 0.77, 0.84). Upon removal of patients with benign bile duct stricture or malignancy from the CBD stone “present” group (n = 610), the AUC was 0.80 (95% CI: 0.76, 0.83). Finally, because patients who had undergone cholecystectomy and patients who exhibited cirrhosis can alter the determinant validity [24, 25], the AUCs after exclusion of these patients (n = 533) were 0.81 for the scoring model (95% CI: 0.77, 0.84), 0.68 for the ASGE guidelines (95% CI: 0.64, 0.72), and 0.68 for the ESGE guidelines (95% CI: 0.64, 0.72). In summary, the scoring model’s AUC was generally consistent regardless of the missing value management approach, the removal of data for patients with benign bile duct strictures or malignancy, and the removal of data of patients who were lost to FU. The exclusion of s/p cholecystectomy and cirrhotic patients minimally increased the AUCs of the scoring model and the guidelines.


A model’s overall performance can be interpreted from its LHR+ and AUC values [26-28]. For patients in the high-risk group, the scoring model’s LHR+ was 3.47 (95% CI: 2.60, 4.64). For an LHR+ of 2 to 5, use of the model could presumably influence the pre-test to post-test probability [28]. With a pre-test probability of 59.9% (CBD stone prevalence in this study), the CBD stone probability (i.e., post-test probability or positive predictive value) shifted to 83.9%, approximately 20% higher than the pre-test value. For the low-intermediate risk classification, the LHR+ was 0.16 (95% CI: 0.09, 0.27). For an LHR+ between 0.1 and 0.2, the model had a moderate likelihood of influencing pre-test to post-test probability [28]. The probability of stone absence increased from 40.1% to 81.0% (i.e., negative predictive value); the probability of CBD stone presence decreased from 59.9% to 19.0%. The AUC value reflects a model’s overall performance. The scoring model had an AUC of approximately 0.80 (95% CI: 0.76, 0.83); its discrimination properties were acceptable to excellent (AUC 0.70 - 0.80) [27]. The internally validated AUC decreased to 0.76 (95% CI: 0.72, 0.81). The proposed model exhibited significantly better performance than did the ASGE and ESGE guidelines for CBD stone prediction in the high-prevalence population, according to the comparative validation (AUC and decision curve analysis) (Fig. 5).

Concerning model predictors, we found that pancreatitis was a negative predictor, while cholangitis did not reach statistical significance. Regarding the negative for score pancreatitis, our results are consistent with published findings that most CBD stones in pancreatitis patients often spontaneously pass into the gastrointestinal tract [29]; a less-invasive investigational approach is appropriate in such patients [18]. Furthermore, cholangitis, a strong clinical predictor of CBD stones [5, 9], was a nonsignificant variable in our multivariable analysis. This outcome is also consistent with previous literature [30, 31]. The use of cholangitis as a sole predictor could be an important reason for the limited predictive ability of current guidelines. Notably, ALP was a potent predictor. ALP level > 250 mg/dL had the highest odds ratio (3.35; 95% CI: 2.02, 5.55). The significance of the ALP and CBD stone relationship has been extensively analyzed [3, 32, 33]. However, ALP has minimal importance in current guidelines. Our findings suggest that more attention to ALP may be useful in future guidelines or the construction of predictive models.

Our scoring system is based on assessment of patient-specific predictors. The sum of assigned predictor scores (Table 2) serves as the individual patient’s model-based score. The individual patient’s score is used to support the assessment of CBD stone probability, together with the risk group classification. According to risk curve analysis, a higher score was associated with a higher probability of CBD stone presence (Fig. 4). Our scoring model can also be used in s/p cholecystectomy and cirrhotic patients, although these factors can affect CBD size and LFT results [24, 25].

When implementing the model, additional factors should be considered with respect to the availability of expert physicians and specialized equipment. Although the model could reasonably reduce the probability of CBD stones for the low-intermediate risk group, the probability remained moderate (i.e., 20-30%). IOC (or laparoscopic ultrasound [34]) may be the most reasonable approach because cholecystectomy can be performed in the same setting [35]. However, for physicians or hospitals without the capability to treat detected stones, there may be a need for patient transfer or the use of less invasive investigations (e.g., MRCP or endoscopic ultrasonography) [36]. Laparoscopic bile duct exploration (trans-cystic/trans-ductal) [37] or same-setting ERC (i.e., ERC combined with cholecystectomy) [7] are potential methods for removal of IOC-detected CBD stones. However, because patients with CBD dilatation only comprised 12.9% (n = 11) of our cohort, trans-ductal CBD exploration could not be applied because it requires a dilated duct [37]. In the absence of alternative interventions for IOC-detected CBD stones, possible treatment options are trans-cystic biliary stent insertion followed by transfer for ERC (in an ERC-capable hospital) [38], or the acquisition of a clear cystic duct (e.g., via ligation or clipping of the cystic duct stump to prevent leakage related to high pressure from the retained CBD stone) followed by rapid transfer. Postoperative abdominal pain or cholangitis can occur in patients with persistent stones [39]. Persistent CBD stones are unlikely to increase the probability of cystic duct stump leakage, although they can aggravate its severity [40].

Our proposed model sufficiently increased the CBD stone probability that is appropriate for consideration of ERC in the high-risk group (i.e., from 59.9% to 83.9%). However, our short survey indicated that some physicians expect near 100% CBD stone probability; endoscopic ultrasonography and ERC in the same setting may be optimal [41]. This approach can almost avoid the need for diagnostic (unnecessary) ERC. However, because most CBD stone patients are older adults, the prolonged procedural time, increased sedation [42], and cost can limit the application of combined endoscopic ultrasonography and ERC. The scoring model may improve patient selection for this combined approach.

The intermediate-risk group might constitute an indeterminate group. The CBD stone chance was moderate (49.8% in our cohort); a less invasive investigation (e.g., MRCP or endoscopic ultrasonography) may thus be more suitable. Nevertheless, IOC is appropriate for all risk groups if experienced surgeons and specialized equipment are available [43]. In the Supplementary Material 3 (, we show a proposed CBD stone investigation and treatment flow approach regarding specific risk groups; we provide example checklists for clinical application here (Supplementary Material 4,

By observing the CBD stone “absent” patients (n = 249), all predictors generally appeared lower when compared to CBD stone “present” group. However, a large number of CBD stone “absent” patients still had an abnormality upon the basic investigations. Regarding Table 1, there were 70 (28.1%) patients with CBD stone detection and 160 (64.3%) with CBD dilatation from basic imaging. The long interval between basic imaging and reference tests, which took more than 2 weeks in 41.2% of the patients, may be one of the explanations since it is known that CBD stone can spontaneously pass to the gastrointestinal tract [44]. Moreover, CBD dilatation can remain even after the removal of CBD stone [45]. However, when considering LFTs which had been examined within 7 days before the reference tests, a large number of CBD stone “absent” patients still had LFTs abnormalities. LFTs may take several weeks to return to normal, especially among patients with prolonged and high degree of obstruction [46]. With these factors, the proportion of CBD stone “absent” patients who were investigated with ERC in this study was high (194 (77.9%) patients). When applying the newly derived scoring system to the CBD stone “absent” group, only 42 (16.1%) patients (Table 3) were categorized into the high-risk group. With this proportion, the scoring system might help this group of patients avoid ERC. Nevertheless, a large proportion of CBD stone “absent” patients still had LFTs abnormalities. ERC may eventually offer some benefits, such as clearing debris or relieving some degree of ampullar obstruction from endoscopic sphincterotomy. However, whether ERC would really be an advantage for this group of patients or not is still unknown. Thus, further studies are required.

There were considerable limitations in our study. First, we reviewed data from reference tests. Some patients with suspected CBD stones were not included in our data; other patients had few unusual findings in LFTs or imaging result abnormalities, and attending physicians chose observation as management for such patients. Thus, there were no reference test records for these patients. However, we considered the outcome validity to be an essential focus of the study; we did not modify the study protocol. With a similar potential selection bias issue, our reference tests did not include all CBD stone confirmatory tests. Endoscopic ultrasonography was not available in the study hospital during the study period. Second, a retrospective design is not the optimal data collection approach for a model development study because it involves various potential biases [16]. Third, for the proposed application, LFTs should be examined within 7 days before using the score-based model to assess the CBD stone risk or choose a reference test that is compatible with our study protocol. Fourth, validation is the crucial process for a predictive model development. External validation or evaluation of the model performance on separate data is the best method. However, due to our limited study size, we internally validated our model using the resampling procedure (bootstrapping), in which the same data for model development were used. TRIPOD also states that randomly splitting data into two groups (one to develop the model and one to evaluate its performance) is not recommended nor it is better than the resampling approach [16]; however, the newly derived model is in a prerequisite state for the proposed application. Consequently, it requires further essential external validation, especially the prospective data collection. Fifth, our study setting was a referral tertiary hospital. Therefore, the interval between the basic imaging and the reference tests was a combination of local and referral cases. In this study, a large proportion (41.2%) of patients had had basic imaging more than 2 weeks prior to the reference tests completion. In addition, CBD stone is a dynamic process, and the result may change significantly in various hospital setting situations. Thus, an external validation in different hospital setting is required. Sixth, the two model predictors, which are cholangitis and CBD stone detection, were strong predictors of the current guidelines [5, 9]. Regarding the guidelines, when either of these predictors is presented, the modality suggestion is ERC. However, when considering the practical usage of the scoring model with the presence of either cholangitis or CBD stone detection, ERC may not be the recommended investigational modality. With this issue, discussion with patients is mandatory in the early stage of model application. Finally, the CBD prediction model was developed using data from patients with relevant clinical manifestations and a high-prevalence population. Thus, the findings cannot be applied to a low-prevalence population until they have been confirmed in additional studies.

In conclusions, our proposed scoring model demonstrated reasonable ability to predict CBD stones; it is suitable for use in patients with relevant clinical manifestations or in a high-prevalence population. However, because there is variability among institutes concerning the investigation and treatment of CBD stones, the proposed model requires the consideration of whether specialized physicians or equipment are available. For application of the model to a low-prevalence population, additional studies are needed.

Supplementary Material▴Top

Suppl 1. Description of the study’s statistical methods.

Suppl 2. Classification properties for each 10% of model-predicted CBD stone probability.

Suppl 3. Proposed guideline for application of the scoring model.

Suppl 4. Example checklist for clinical application of common bile duct stone score.


We thank Ryan Chastain-Gross, Ph.D. for editing a draft of this manuscript. We thank Dr. Thawee Ratanachu-ek ( for his valuable clinical suggestions.

Financial Disclosure

The authors received financial support from Sawanpracharak Hospital Medical Education Center ( for the language editing and the publication.

Conflict of Interest

All authors declare that there is no conflict of interest.

Informed Consent

The requirement for patient consent was waived because of the retrospective study design and the use of deidentified data.

Author Contributions

All authors conceived and designed the study. ST and JP were responsible for statistical analysis. ST and KV participated in writing. ST, JP, and CM participated in critical revision. All authors read and approved the final version of the manuscript.

Data Availability

The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available due to restrictions (they are containing information that could compromise the privacy of research participants).
